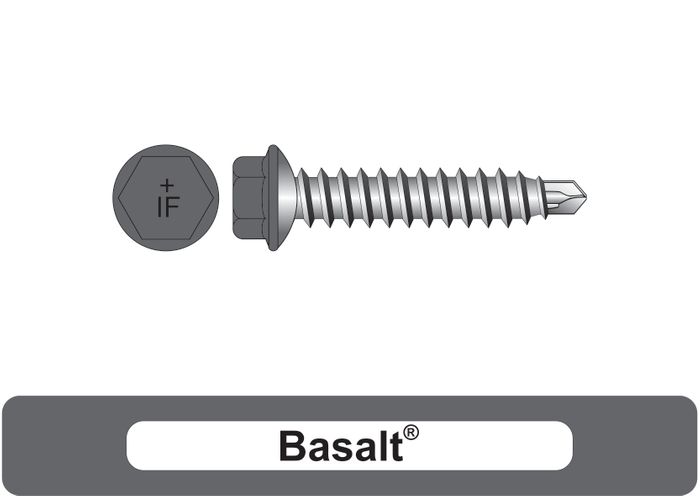

• Features a heavy duty 10g shank with a very small 1/4" (6mm) hex head
• Fast drilling and easy to use
• Multi purpose for fixing into both metal and timber substrates
• High corrosion resistant coating suitable for use both internally and externally
• Complies with AS3566.1 & 2

1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into steel.

• Originally designed for valley fixing of mini corrugated metal cladding profiles to metal or timber substrates these screws are also suitable for fixing standard corrugated profiles where a small head size is preferred.
