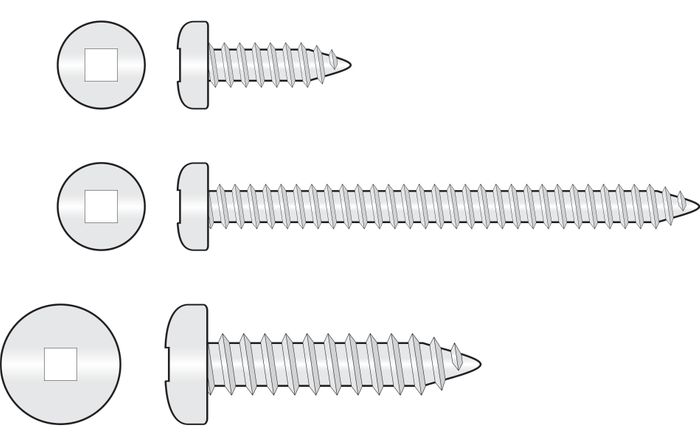

172030 Stainless Steel Self-Tapping - Pan Head, Square Drive
Featuring a #2 Square drive these screws offer the added benefit of less chance of camming out the recess in high torque applications. Recommended for fixing into timber or sheet metal in corrosive environments or where a long life fastener is required. If fastening into metal ensure it is compatible with Stainless Steel Self-Tapping screws. Made from 300 Series Stainless Steel provides a long life, aesthetically pleasing bright shiny silver finish with high hygienic benefits.
• Featuring a #2 Square drive these screws offer the added benefit of less chance of camming out the recess in high torque applications.
• High Corrosion Resistance
• High Fire and Heat Resistance - Retains strength under harsh and extreme temperature conditions
• Hygienic- Easy to clean and sanitise
• Impact Resistance and strength - extremely tough and highly durable material with high impact resistance
• Aesthetic appearance
• Available in a wide range of sizes and lengths
• High Corrosion Resistance
• High Fire and Heat Resistance - Retains strength under harsh and extreme temperature conditions
• Hygienic- Easy to clean and sanitise
• Impact Resistance and strength - extremely tough and highly durable material with high impact resistance
• Aesthetic appearance
• Available in a wide range of sizes and lengths
1/ Ensure the correct driver tool is fitted to your power drill or screw driver. Can also be driven by hand screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m.
Note:-
Hardwoods may require a pilot hole to be pre-drilled as this will assist the screw in tapping a thread whilst reducing timber splitting and driving torque.
Sheet metal must be pre-drilled with a pilot hole.
For information on the correct size pilot hole to drill refer to our Technical data section for Self Tapping Screws.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m.
Note:-
Hardwoods may require a pilot hole to be pre-drilled as this will assist the screw in tapping a thread whilst reducing timber splitting and driving torque.
Sheet metal must be pre-drilled with a pilot hole.
For information on the correct size pilot hole to drill refer to our Technical data section for Self Tapping Screws.
• Typical applications include fixing in aluminium window fabrication, aluminium extrusions etc.,
Ideal for use in:-
• highly corrosive environments
• professional and domestic kitchen environments and equipment
• health, laboratories environment
Ideal for use in:-
• highly corrosive environments
• professional and domestic kitchen environments and equipment
• health, laboratories environment
| Size | Pack Type | 480 Y Material | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|
| 8g x 1/2" (12mm) |
|
||||
| 8g x 3/4" (20mm) |
|
||||
| 8g x 1" (25mm) |
|
||||
| 8g x 1 3/4" (45mm) |
|
||||
| 10g x 1" (25mm) |
|
