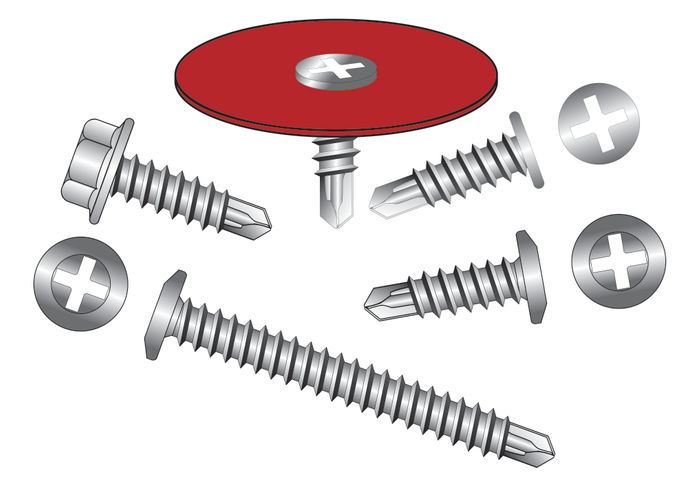

620310 Red Fibre Washer System for fixing to steel frames
These large diameter, Low Profile Fibre washers are designed for use with 10g Wafer, SupaLow™ or Hex SteelMates® when attaching Sisalation to metal purlins, battens or wall frames. Fibre construction protects sisalation from tearing and damage. 32mm Wide bearing area reduces the chances of tearing of fixture material Easily removed if required Can be used with low profile headed screws to minimize potential obstruction to subsequent cladding materials
• Fibre construction protects sisalation from tearing and damage.
• 32mm Wide bearing area reduces the chances of tearing of fixture material
• Easily removed if required
• Can be used with low profile headed screws to minimize potential obstruction to subsequent cladding materials
• 32mm Wide bearing area reduces the chances of tearing of fixture material
• Easily removed if required
• Can be used with low profile headed screws to minimize potential obstruction to subsequent cladding materials
1/ Place screw through hole in fibre washer
2/ Ensure the correct driver tool is fitted to your power drill or screw driver.
3/ Place the screw on the driver tool and position it onto the materials being fastened.
4/ Push sharply to create a centre mark and to prevent screw wander.
5/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m. when used with SteelMates® for fixing to steel.
2/ Ensure the correct driver tool is fitted to your power drill or screw driver.
3/ Place the screw on the driver tool and position it onto the materials being fastened.
4/ Push sharply to create a centre mark and to prevent screw wander.
5/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 2,000 r.p.m. when used with SteelMates® for fixing to steel.
• For use with 10g Wafer, SupaLow™ or Hex SteelMates® when attaching Sisalation to steel purlins, battens or wall frames.
| Size | Pack Type | 480 Y Material | 490 Y Description/Features | 650 Y Diameter | 660 Y Hole/Bore Size | 670 Y Thickness | Code |
|---|---|---|---|---|---|---|---|
| M5 x 32mm |
|
