171200 Stainless Steel LapMates™ For High Expansion/Contraction Applications

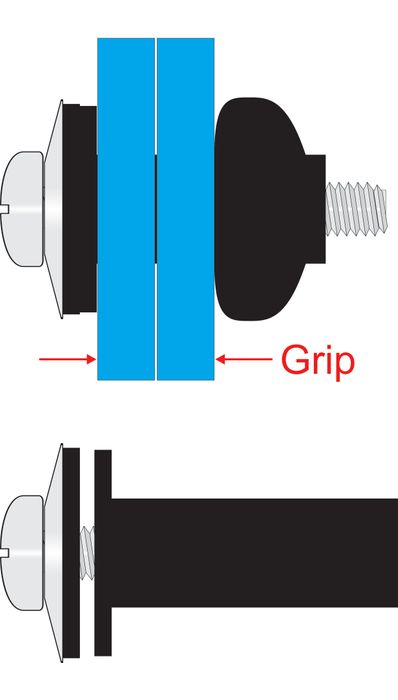

LapMates™ are specifically designed for lap stitching long life roofing and cladding profiles which are subject to high expansion and contraction. This product is an assembly consisting of an M5 x 25 EPDM Rubber nut with 316SS threaded insert, a 316SS 19mm Bonded Washer and a 316SS M5 x 30mm Pan Metal Thread screw. LapMates™ are ideal for use in highly corrosive environments.
• Provides a firm and flexible connection between overlapping roofing and cladding profiles
• M5 Pan Head 316 Stainless Steel screw. 316SS Threaded Insert and 316SS Bonded Washer make it ideal for long life in highly corrosive environments
• EPDM rubber nut provides a water proof seal while allowing for maximum expansion and contraction movement
• M5 Pan Head 316 Stainless Steel screw. 316SS Threaded Insert and 316SS Bonded Washer make it ideal for long life in highly corrosive environments
• EPDM rubber nut provides a water proof seal while allowing for maximum expansion and contraction movement
1/ Pre- drill a 10mm clearance hole through the materials being fastened together.
2/ Insert the LapMates™through the hole and tighten with a power tool or hand screwdriver until firm hold is achieved.
2/ Insert the LapMates™through the hole and tighten with a power tool or hand screwdriver until firm hold is achieved.
• Ideal for use with profiles made from Aluminium, Fibreglass and Polycarbonate materials and/or long lengths of roofing profiles.
• LapMates™ are ideal for use in highly corrosive environments
• Designed for lap stitching roofing profiles subject
• LapMates™ are ideal for use in highly corrosive environments
• Designed for lap stitching roofing profiles subject
| Size | Pack Type | 480 Y Material | 530 Y Driver Tool | 550 Y Grip Range (mm) | 560 Y Drill Size | Code |
|---|---|---|---|---|---|---|
| M10 x 24mm |
|
