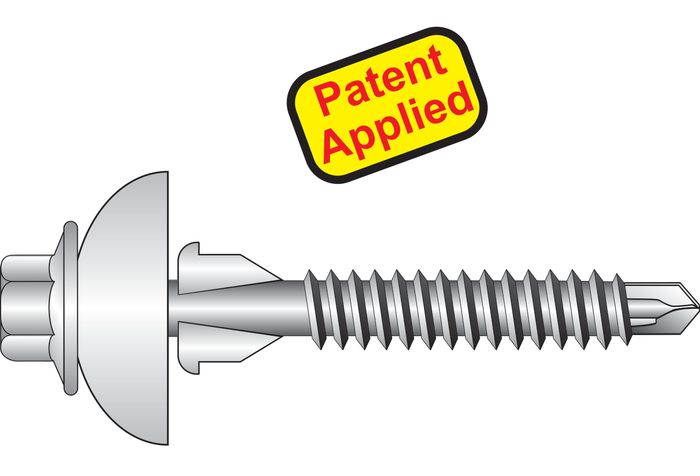

160000 PolyMates® - Multi Purpose, Hex & Polycarb Washer
PolyMates™ unique, Patented Wing design allows for a single operation installation with the screw self drilling through the crest of the profile and into the batten/purlin whilst simultaneously drilling a clearance hole. This meets the Profile manufacturers specification to drill a clearance hole through the profile crest to allow the roof sheet to expand and contract and allows for a single tool to be used to instal the fastener. Without this hole the sheet will split and water leaks occur.
• Instant piercing
• Assembled with Polycarb Seal for waterproof connections
• Fast drilling and easy to use
• High corrosion resistant coating designed for use externally
• Complies with AS3566.1 & 2
• Assembled with Polycarb Seal for waterproof connections
• Fast drilling and easy to use
• High corrosion resistant coating designed for use externally
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. when fixing into timber and 1,800~2,000 r.p.m when fixing into light steel battens.
• Specifically designed for crest fixing Polycarbonate roofing profiles to timber, thin steel battens and steel purlins up to 2.40mm maximum.
• Suitable for corrugated and square rib profiles with a 65mm length version for profiles with higher crest
• Suitable for corrugated and square rib profiles with a 65mm length version for profiles with higher crest
| Size | Coating | Pack Type | 500 Y Drilling Capacity in Steel | 510 Y Rec. Embedment in Timber | 530 Y Driver Tool | Code |
|---|---|---|---|---|---|---|
| 14g x 50mm |
|
|||||
| 14g x 65mm |
|
