170550 Stainless TimberMates® - Bugle Rib Head
Stainless TimberMates® feature a Type 17 self-drilling point for drilling into timber. Manufactured from 304 grade Stainless Steel these screws are for fixing to timber in highly corrosive environments where a long life fastener is required. They feature a 5mm Internal Hex (Allen Key) drive & a self-countersinking Bugle Rib head making them very easy to drive & countersink. Best driven with a high torque, low speed power drill.
• Stainless TimberMates® provide exceptional corrosion resistance combined with fast and easy installation into timber substrates
• Made from 304 Stainless Steel
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes and lengths for a multitude of applications
• Complies with AS3566.1 & 2
• Made from 304 Stainless Steel
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes and lengths for a multitude of applications
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. Best driven with a high torque, low speed power drill.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m. Best driven with a high torque, low speed power drill.
• Ideal for fixing timber to timber in pergolas, outdoor furniture, timber boardwalks etc. in highly corrosive environments
• Beach front buildings, seating and infrastructure
• Also ideal for a multitude of applications fixing to timber or timber t
• Beach front buildings, seating and infrastructure
• Also ideal for a multitude of applications fixing to timber or timber t

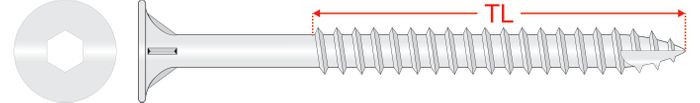

| Size | Pack Type | 480 Y Material | 510 Y Rec. Embedment in Timber | 520 Y Thread Length (TL) | Code |
|---|---|---|---|---|---|
| 14g-10 x 50mm |
|
||||
| 14g-10 x 75mm |
|
||||
| 14g-10 x 100mm |
|
