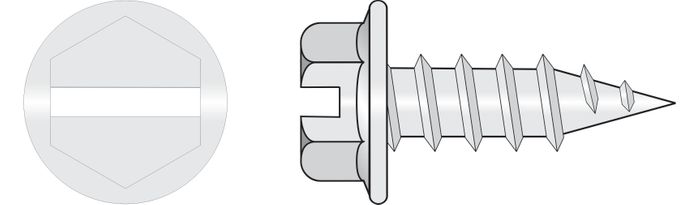

171100 410 Series Stainless Steel StitchMates® - Hex Slotted Head
Stainless StitchMates™ feature a needle point allowing them to self drill through and/or lap stitch thin sheet metal up to 1.2mm thick i.e. 2 pieces of 0.6mm steel. The Hex Washer head provides a heavy duty, stable driving fixing with a wide surface clamping area and features a slotted head for easy removal for maintenance or other purposes. Made from hardened 410SS which allows them to self pierce through steel combined with good corrosion resistance.
• Featuring a Hex Slotted head which provides the added benefit of being able to be power driven and then removed and re-installed by hand using a bladed screwdriver. This makes it an excellent choice for use where sheet metal panels or covers need to be removed for maintenance purposes
• Superior corrosion resistance to that of carbon steel screws
• Instant piercing
• Fast drilling and easy to use
• Won't skid, wander or slip
• Minimal drilling swarf
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Complies with AS3566.1 & 2
• Superior corrosion resistance to that of carbon steel screws
• Instant piercing
• Fast drilling and easy to use
• Won't skid, wander or slip
• Minimal drilling swarf
• High Shear Strength
• High Withdrawal Strength
• High Tensile Strength
• High Strip Torque
• Complies with AS3566.1 & 2
1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m.
• Ideal for use in Sheetmetal fabrications, water tanks and other applications where high a longer life fastener is required
Size | Pack Type | 480 Y Material | 520 Y Thread Length (TL) | 530 Y Driver Tool | Code |
---|---|---|---|---|---|
8g-15 x 12mm |
|
