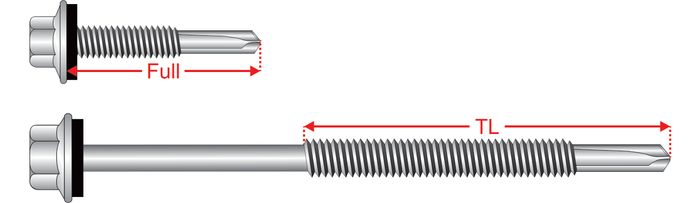

120510 SteelMates® - Super 500™ Hex Seal

• Eliminates the need to pre drill pilot holes in steel up to 12.5mm thick
• Assembled with EPDM Seal for waterproof connections
• Fast drilling and easy to use
• High Shear Strength
• High Withdrawal strength
• High Tensile Strength
• High Strip Torque
• Available in a range of sizes and lengths for a multitude of applications
• High corrosion resistant coatings for external use
• Complies with AS3566.1 & 2

1/ Ensure the correct driver tool is fitted to your power drill or screw driver.
2/ Place the screw on the driver tool and position it onto the materials being fastened.
3/ If necessary push sharply to create a centre mark and to prevent screw wander.
4/ Squeeze trigger and maintain steady, constant pressure until the screw has drilled and fastened.
Recommended Driving speed is approximately 800~1,000 r.p.m.

• For use in applications requiring a waterproof seal
• Applications include valley fixing wall cladding and crest fixing roofing profiles to steel up to 12.5mm thick.

Also available without seal for applications where waterproofing is not required, such as:-
• Ideal for attaching brackets, plates to steel portal frames
• Commonly used where multiple thicknesses of metal are connected together
• Facades, decorative panels in construction and roadworks applications
• Longer lengths can be used for fixing risers for insulated roofing applications in re-roofing older buildings with heavy steel purlins
